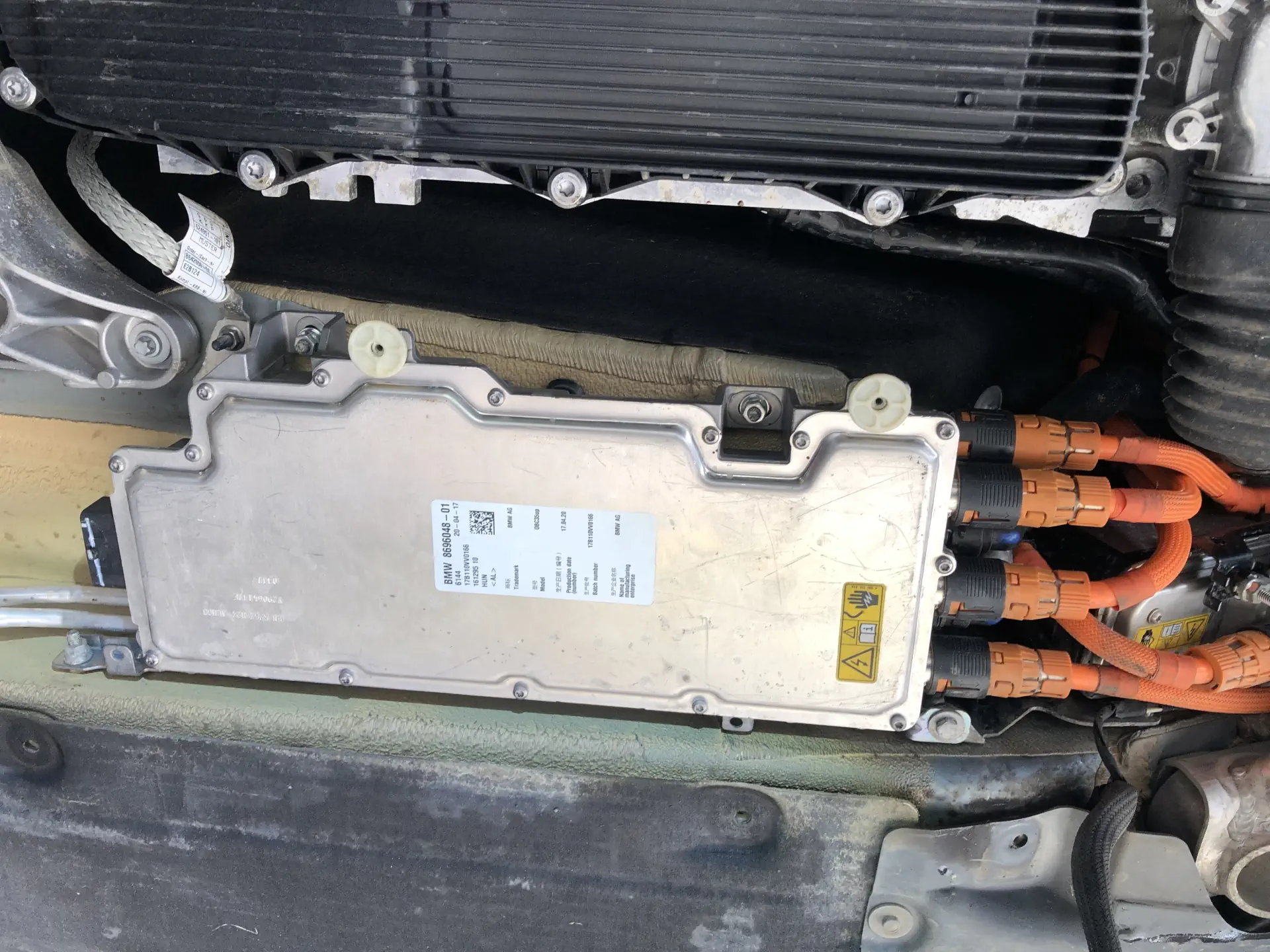

BMW KLE Convenience Charging 61449485031 charger – Repair service

2017-2018 BMW charger G11 G12 Control Unit, KLE Convenience Charging 61449485031 OEM A1

This units are fitted in F series and G series and BMW Hybrid cars

Possible symptoms:

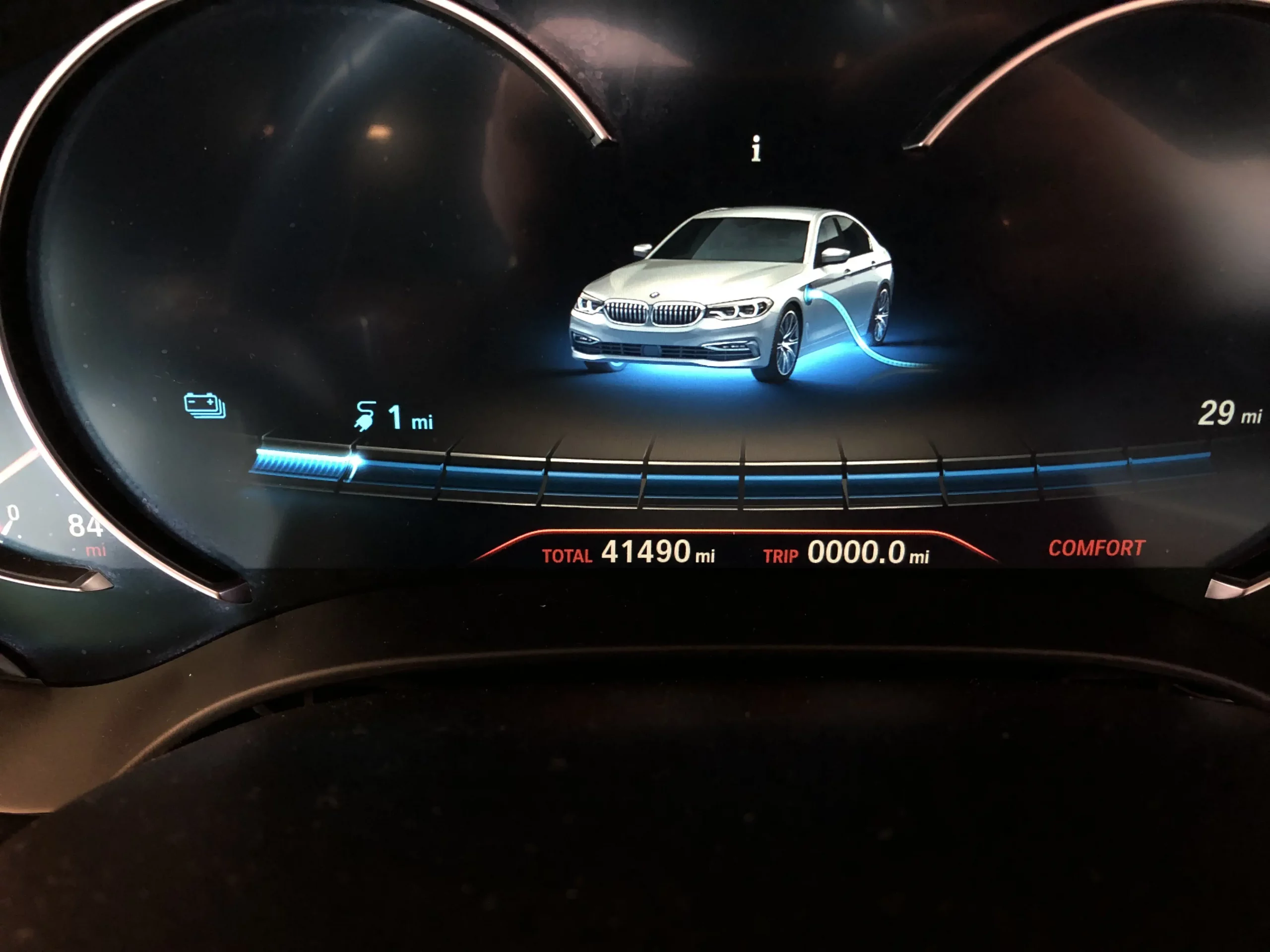

1. Charging aborted - Main power is to low - Unable to charge
2. Not working
3. No communication signal
4. no longer any voltage on the alternating current connection of the KLE
5. no longer any signal on the high-voltage charging socket
6. Charging electronics fault
7. Fault in the high-voltage system
8. DC/DC converter malfunction
9. Inefficient charging due to excessive power reduction of the charging electronics
10. No voltage on high-voltage charging socket
11. PWF status: Residing
12. PRD status: Driving
13. PRD status: Testing-analysis-diagnosis
14. PRD status: Parking
15. PRD status: Residing

Error codes:

• S 0400 - High-voltage battery: State of charge not sufficient
• 21E6E9 - Charging electronics: Charging mode interrupted
• 030ECD - Charge management function: Fault during the charging procedure
• 0316D8 - Check Control message (ID900): Low range
• 030EC8 - Charge management function:no voltage to the charging electronics after the charge
• 804922 - Sensor voltage: Signal implausible
• E05411 - Signal (0x7530-0x001, chassis, vehicle model) invalid transmitter VDP / DSC / AH
• 800A01 - KAFAS camera: cameras view malfunction due to weather conditions
• B7F343 - Emergency battery: Change interval reached

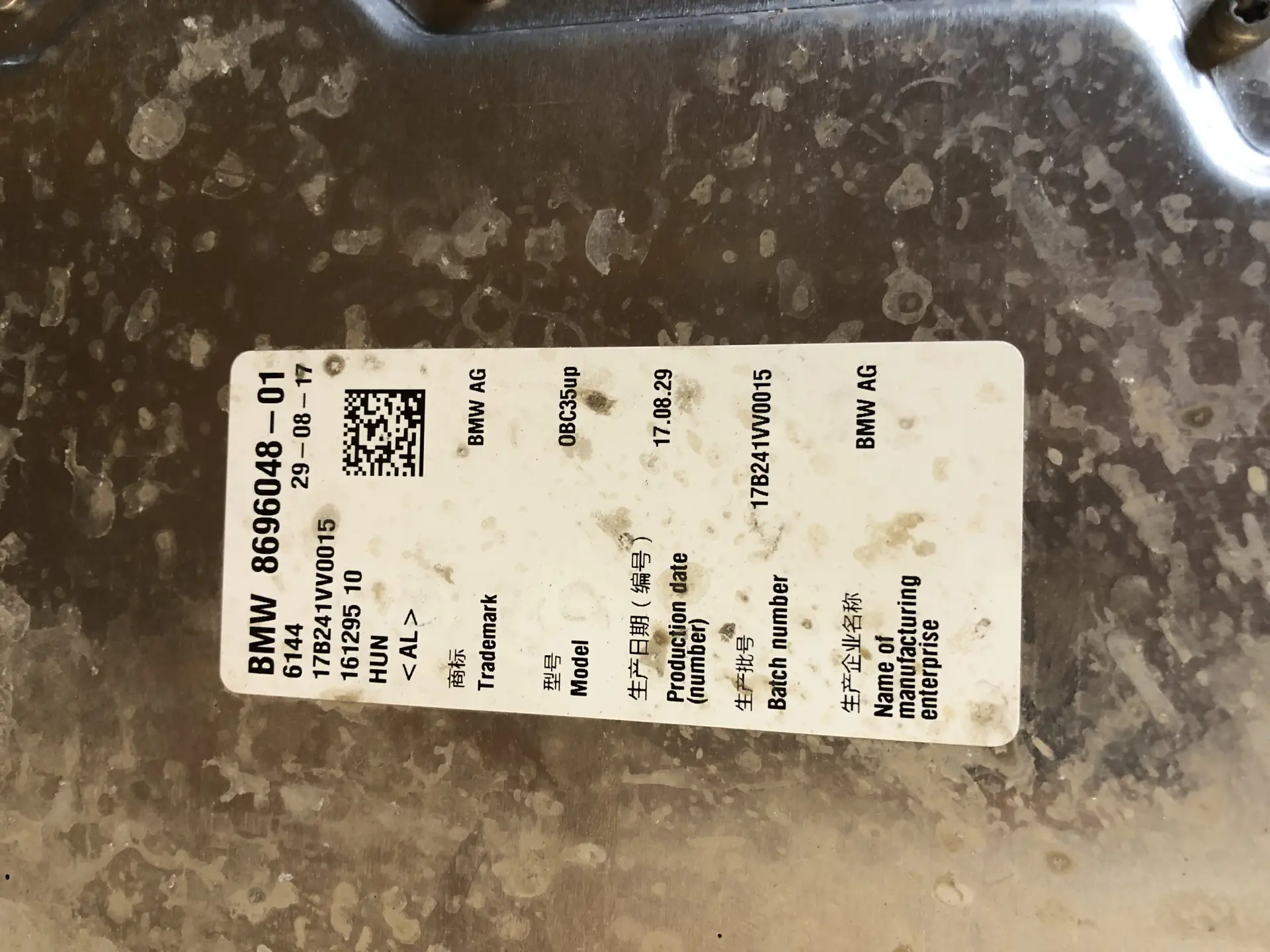

Manufacturer part numbers:

• 7935160-01
• 8740583
• 8740584
• 8642680
• 7935160

BMW models where BMW KLE Convenience Charging 61449485031 charger is being used:

5' G30   (03/2016 — 12/2019)
7' G11   (02/2015 — 02/2019)
7' G11 LCI   (03/2018 — 12/2019)
7' G12   (02/2015 — 02/2019)
7' G12 LCI   (03/2018 — 12/2019)

Supersedes versions of this unit:

61449489060 (05/01/2018 — 08/27/2018), Bilaterally exchangeable
61448740584 (11/01/2017 — 05/01/2018), Exchangeable retrospectively
61448696048 (03/01/2017 — 11/13/2017), Bilaterally exchangeable
61448685983 (07/01/2016 — 06/01/2017), Exchangeable retrospectively
61448672039 (07/01/2016 — 04/08/2016)
